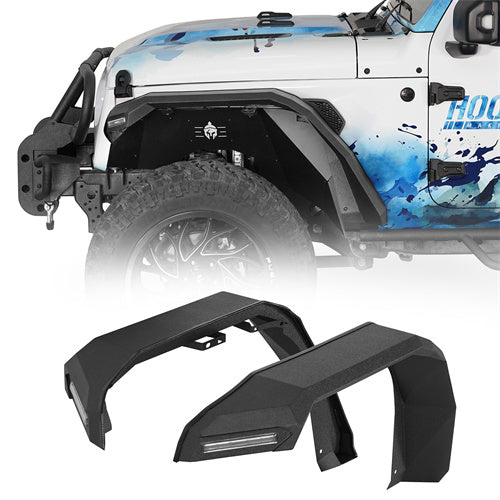

Jeep Flat Front Fender Flares w/ LED Lights ( 18-25 Jeep Wrangler JL & 20-25 Gladiator JT) - Hooke Road

PRODUCT SPECIFICATIONS

HIGHLIGHS

• Product weight: about 40 lbs
• Extra protection from road and trail debris. Features a width of 6.8-inch on the front of the fender flares

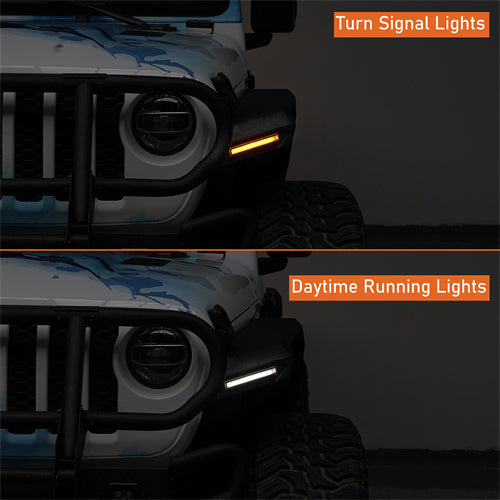

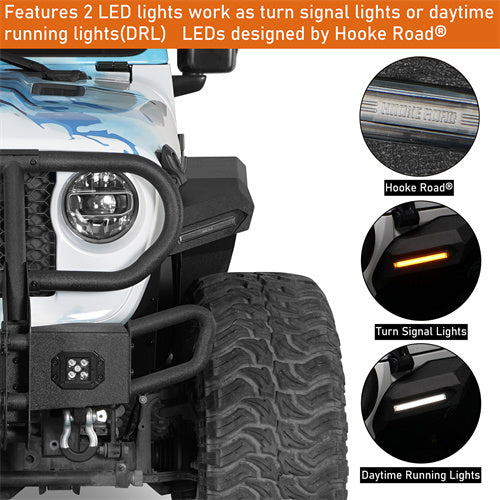

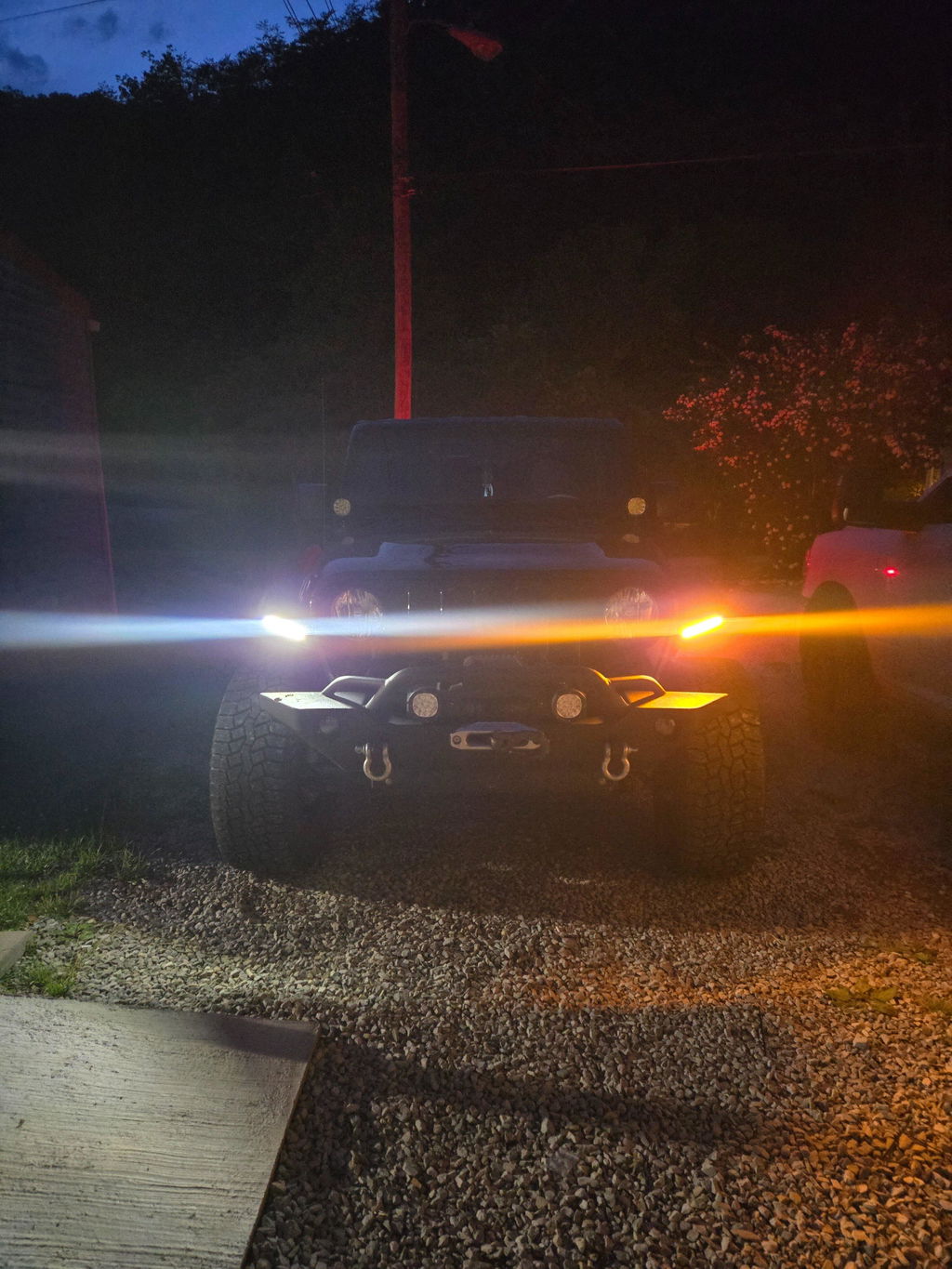

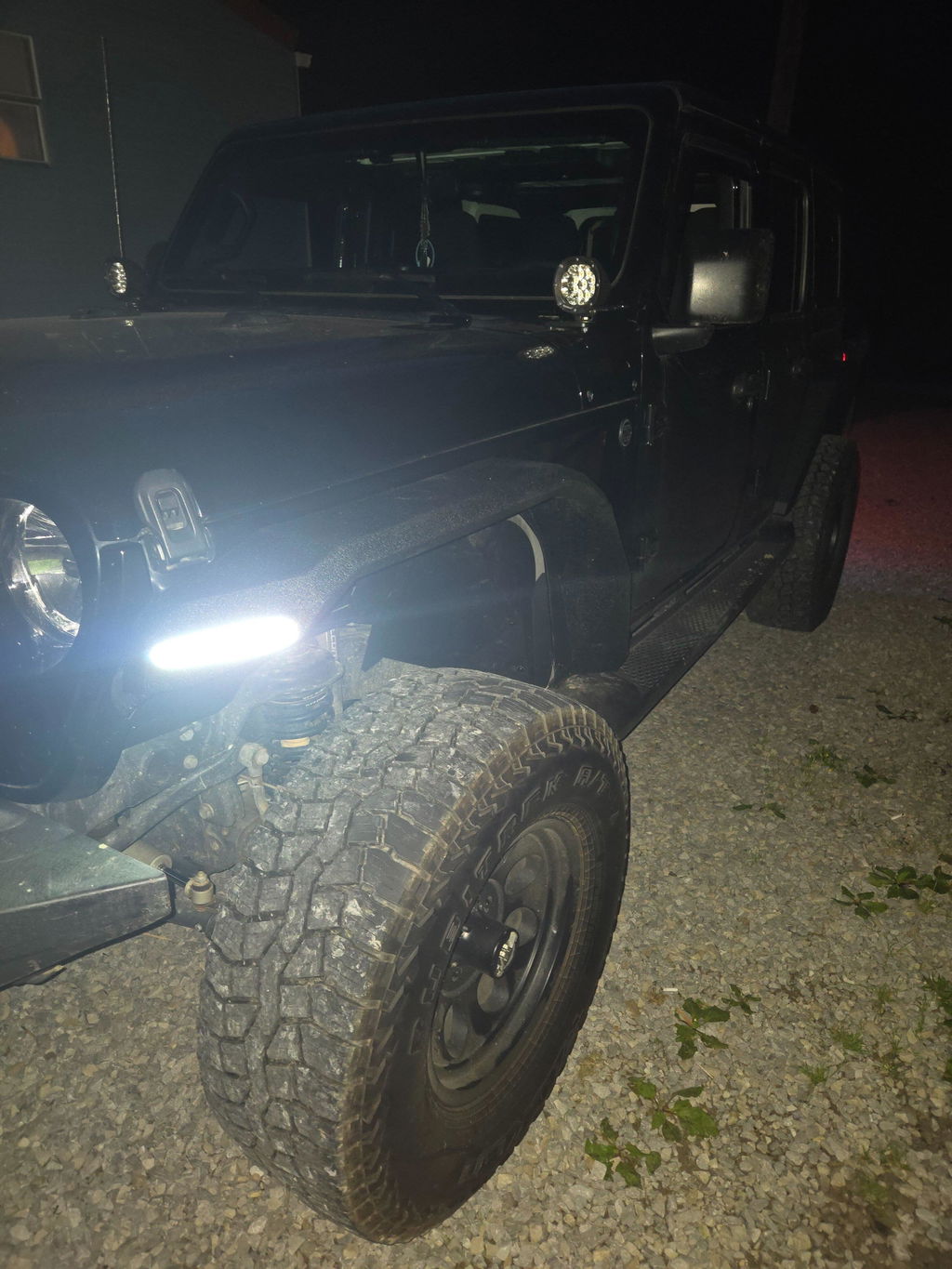

• Features 2 LED lights work as turn signal lights and daytime running lights. These premium LEDs are expertly crafted by Hooke Road, featuring professional-grade design and an eye-catching style

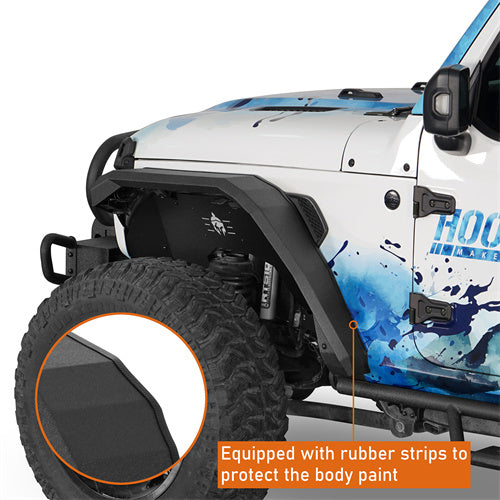

• Equipped with rubber strips to protect the body paint

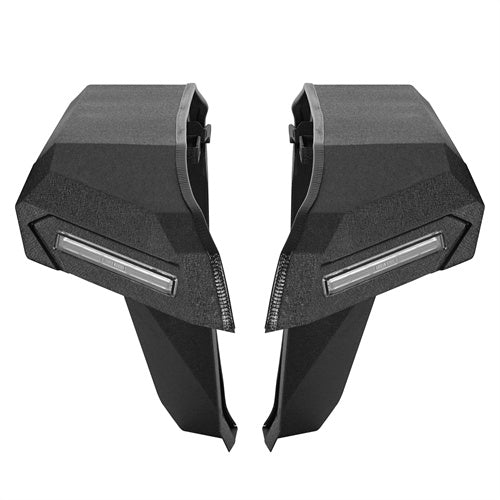

• Sold as pairs. Driver side and passenger side fender flares included

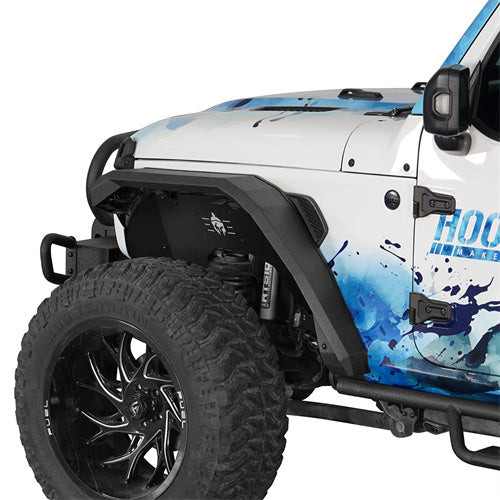

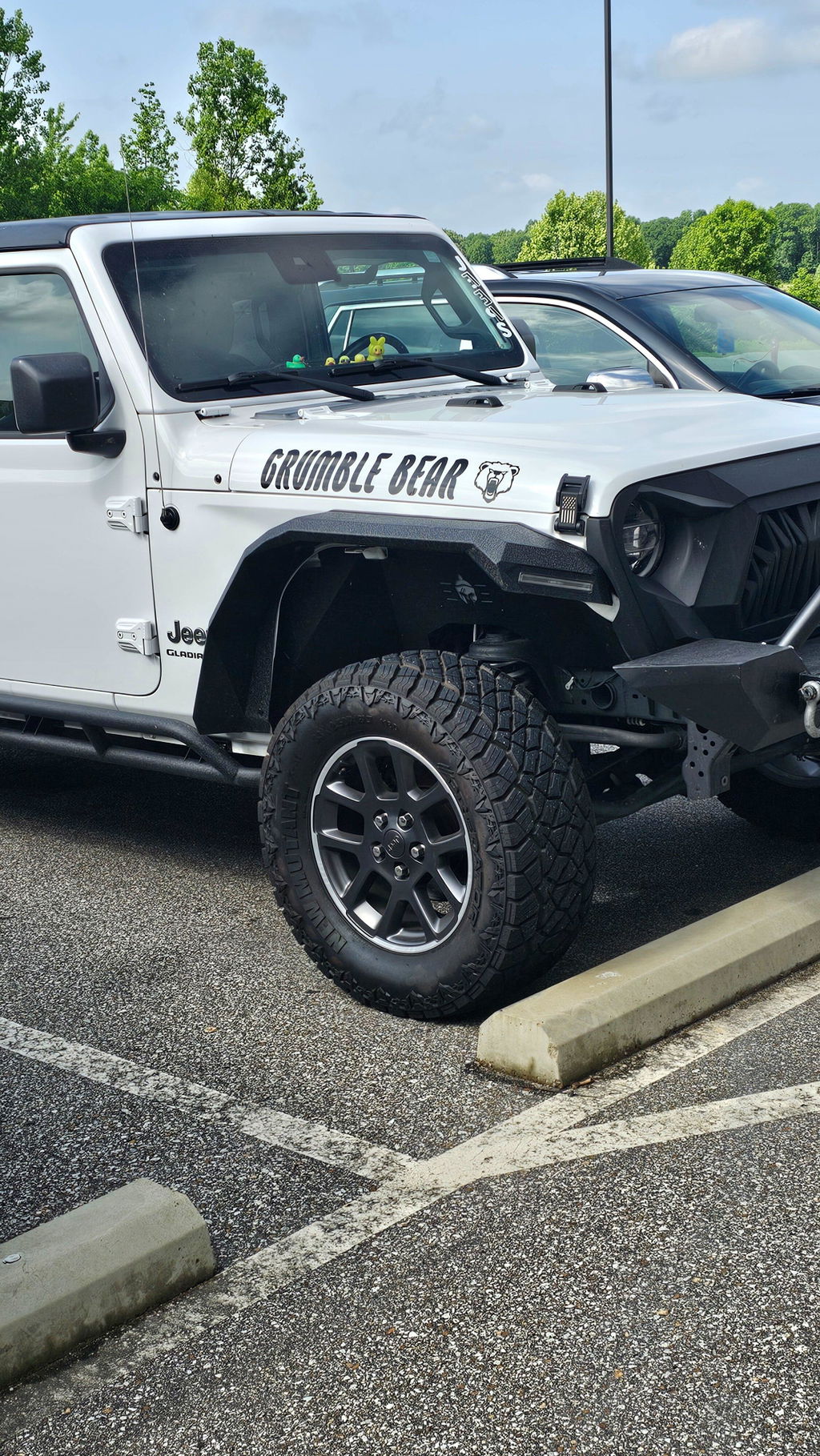

• Aggressive angular flat fender flares that make your vehicle out of the crowd
• Provides additional tire coverage
• Heavy-duty 16-gauge(1/16 inch) steel plate for the fender, and 11-gauge(1/8 inch) steel for mounting structure
• Textured black powder coat finish & Premium E-coating process inside
• Straight forward bolt-on installation. The wiring operation is just plug-and-play.

DIMENSION

Bolt-on Installation Guide and Wiring Operation.

 1.  Remove factory front fender flares and inner fender liners. Clean the area.
 2.  Align the new fender flares with the mounting holes on the vehicle body. Secure them using M820 button head socket cap bolts, M820*1.5 flat washers, and M8 flange hex lock nuts. Tighten securely, but avoid overtightening.
 3.  Connect the wiring harness:
        Negative (black) to factory black wire
        DRL (red) to factory white/green wire
        Turn signal (yellow) to factory white/yellow wire. Install a load resistor if needed to prevent hyper flashing.
 4.  Secure the wiring neatly with clips, tape, and zip ties.
 5.  Reinstall the inner fender liners, ensuring they don't interfere with the new fender flares.
